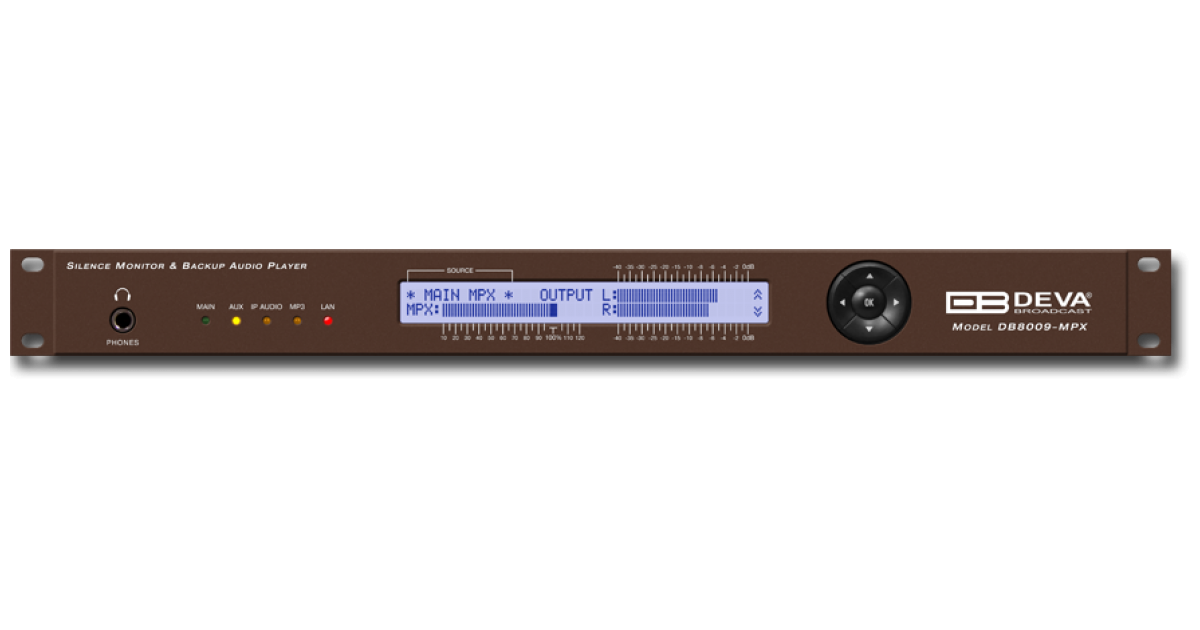

Deva Broadcast DB8009-MPX Silence Detector

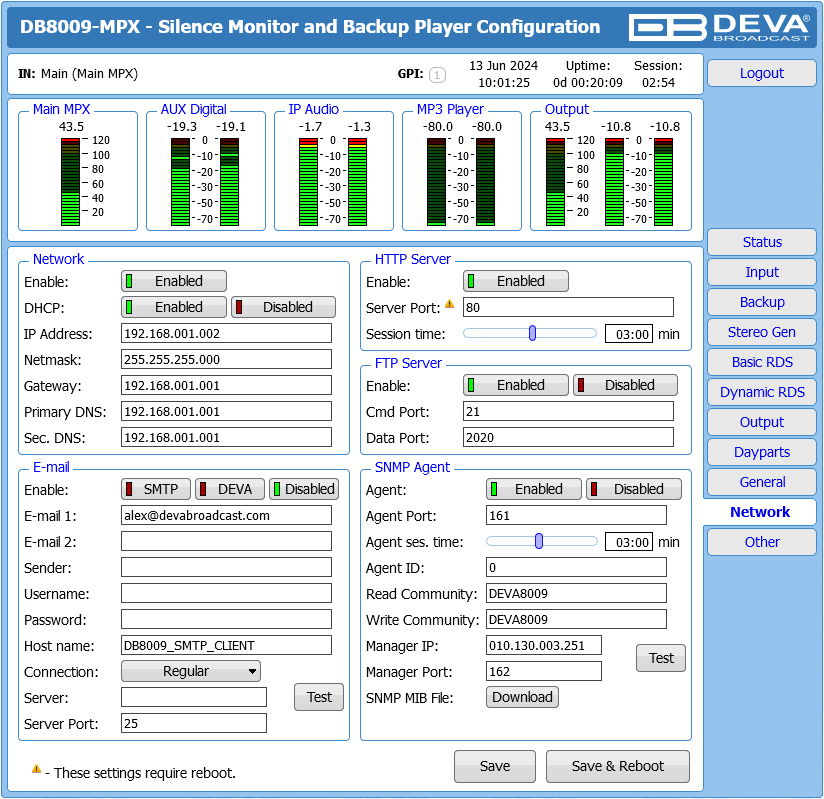

The DB8009-MPX is a highly advanced silence detector and backup audio switcher designed to provide reliable and uninterrupted audio feed. It features a fully DSP-based core, intelligent silence detector, and user-selectable backup audio sources priority. The device also supports alert notifications via email, SNMP, or analog opto-coupled outputs and has a built-in MP3 player with 16 GB storage capacity on an SD card.

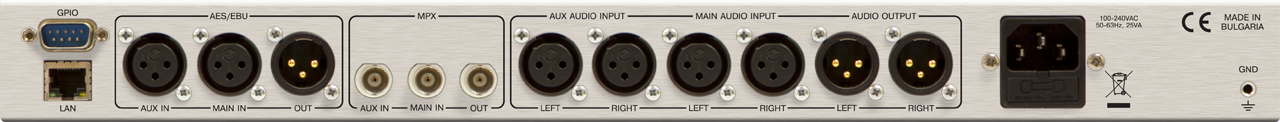

Main MPX (Composite) Input	BNC Unbalanced
Impedance	10 kΩ
Frequency Range	10 Hz to 200 kHz
Level	100% reference in range -12dBu to +18dBu, 0.1dB step, software controlled
Main Analog Audio Inputs	Balanced XLR
Impedance	600Ω or high impedance
Level	0dBFS reference in range -12dBu to +18dBu, 0.1dB step, software controlled
Dynamic Range	>80dB
Digital Gain Adjust	-10db to +10dB
Built-In MP3 Player	16Gb on SD Card
Storage Capacity	16Gb on SD Card
