Wheatstone LXE 1308T

Physical Surface:

• Several form factors available with mainframe configuration flexibility:

– Tabletop with meterbridge

– Wedge low profile (no meterbridge, pairs with separate HDMI monitor)

– Countertop drop (flushmount)

All three choices can be split consoles connected via network in same room or different rooms/locations

• Fully Programmable / Configurable via ConsoleBuilder™

– Every button configurable via setup GUI, can be scriptable, or a variety of other functions

– Every encoder/knob configurable from the setup GUI, Can be scripted (if X then Y) or assigned to other knob or encoder functions.

– Fader is scriptable to control things via ACI like Utility mixer channels.

– Multicolored fully programmable LED buttons throughout (blue, cyan, green, yellow, red, magenta)

– Two full color OLED displays per channel configurable for contextual display

• Optional meterbridge for tabletop version with high-resolution LED meters and digital timer, all assignable from ConsoleBuilder™

• Built in Ethernet switch for plugging in accessories or other host panels

• True IP – connects directly to switch

• Four stereo Program busses

• Four stereo Aux busses

• Four mono or stereo Mix-Minus busses

• Headphone stream to surface - up to one per panel host

• Each input channel offers Phase control, Panning, Fader mode Left, Right, Mono, Stereo - each assignable to any knob/button

• Stereo or mono cue speaker depending on frame size

• Up to 32 physical faders (virtual faders can be controlled via ACI for third-party flexibility)

• Every fader has bus-minus or direct out and is configurable as stereo or mono

• Fader mirroring – allows faders to mirror one another in different locations

• Motorized fader option

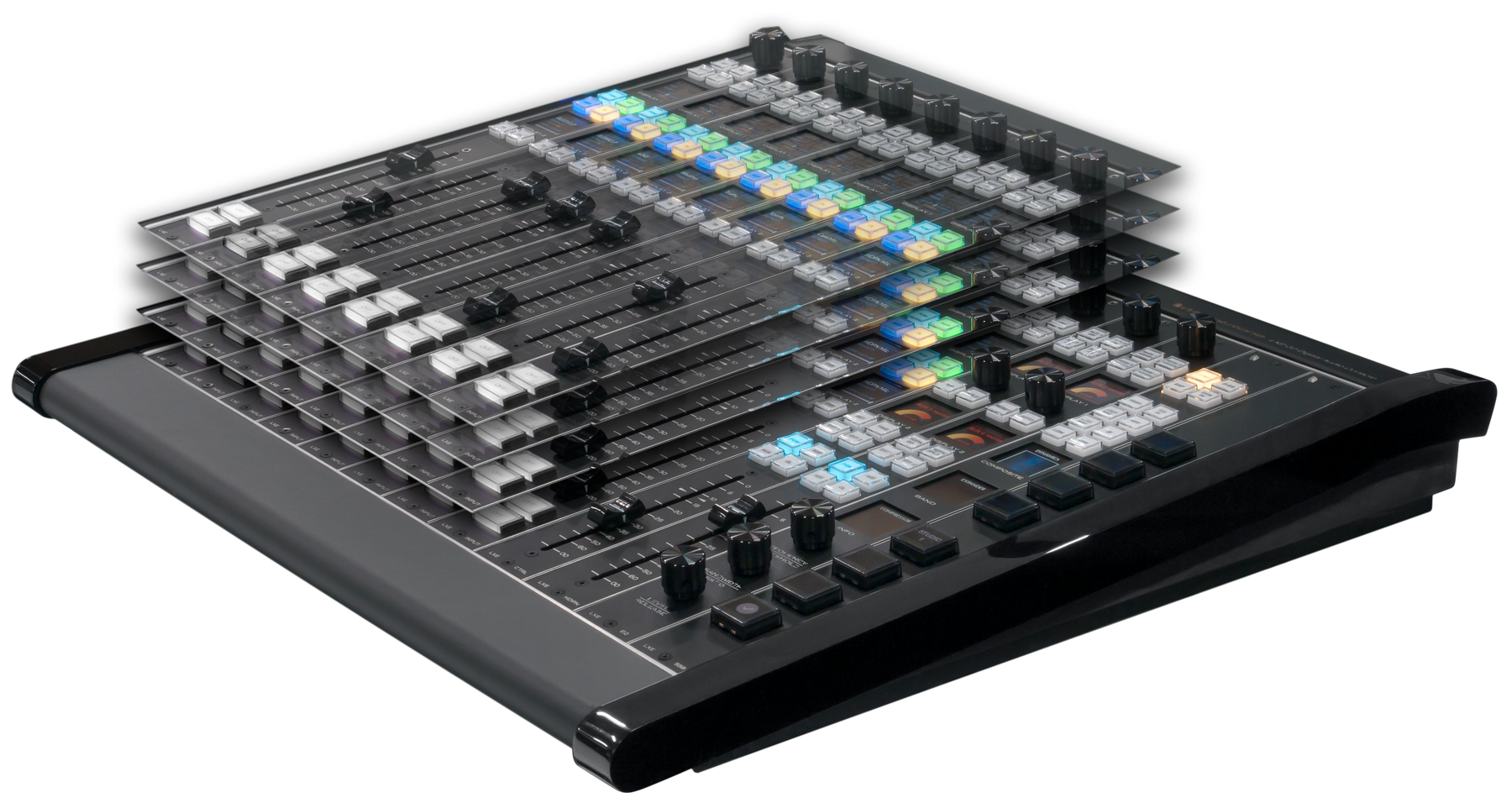

• 8 layers (to accommodate up to 32 input fader channels) – completely customizable and configurable for each layer.

• 16 monitors (include Control Room, Headphones, Studio 1, Studio 2, etc), each with monitor dimming (all with friendly names)

• Monitor mix capable – mix all busses together for monitor output

• Monitor Linking (example: Headphone follow Control Room)

• Level lock for Monitors

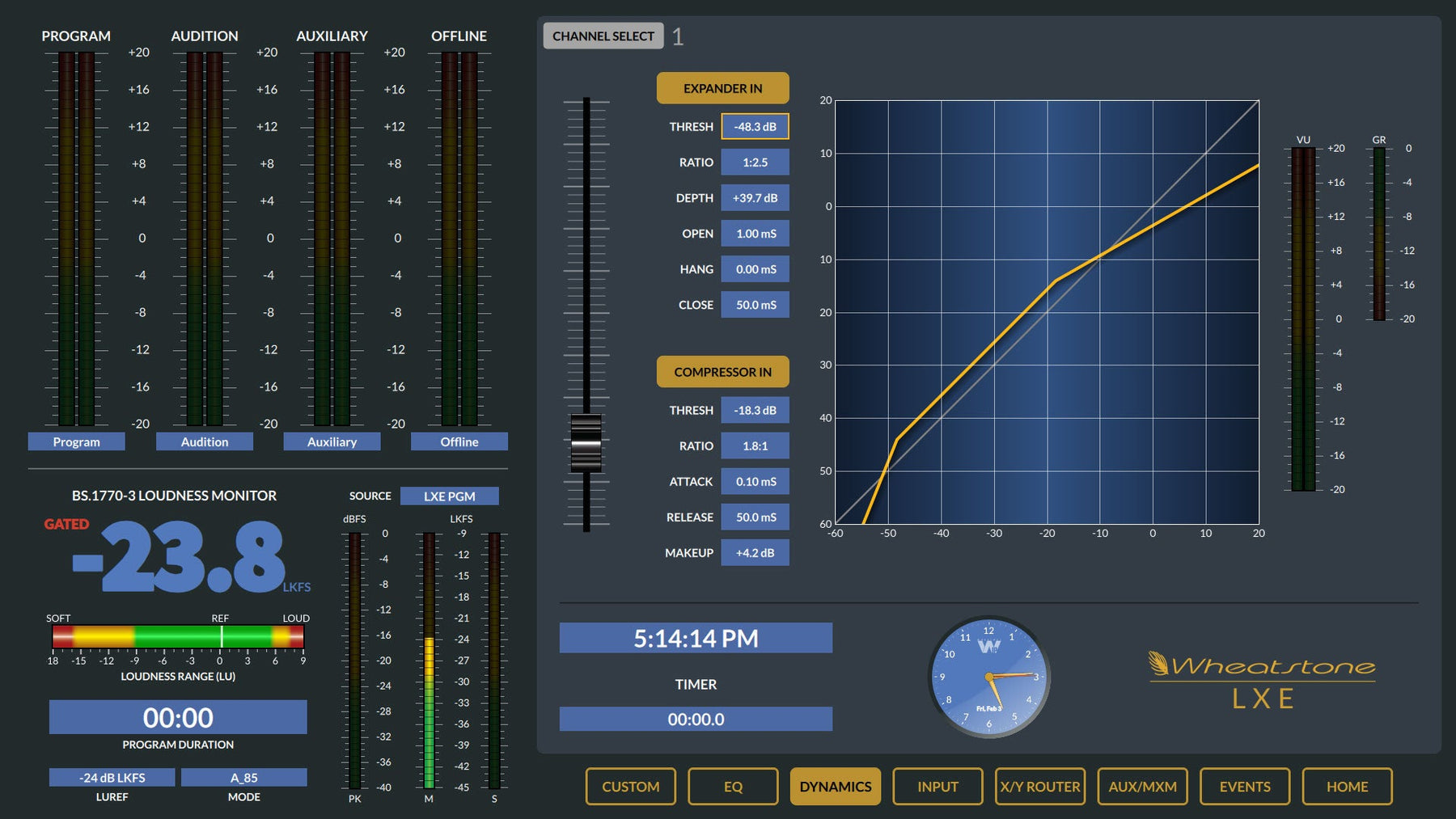

• Dynamics, including Compressor, Expander, Gate, controlled via touchscreen or optional panel

• Full Parametric EQ controlled via touchscreen or optional panel (EQ GUI screen with color coded knobs), with highpass and low pass filters

• Flexible Metering Options:

– Loudness metering

– Phase Correlation metering

– Input metering on each channel

• Automix function controlled via touchscreen GUI


• Info screen on surface for current status

• User management:

– Logging in and out

– User based access to controls

– Vdip saved per user settings

• Unlimited number of events

• Support for remote mix engine (off premises, for use with At-Home systems)

• Time sync to NTP via mix engine

• Display brightness controls

• Accessory panels powered internally

• Tone generator

• Clip player option

Touchscreen GUI:

• Complete set of screens provided to allow control over every aspect of the LXE control surface

• ScreenBuilder™LXE with support for unlimited number of screens (which run one at a time) allows you to build any type of custom screen you need

• Configurable Home screen with up to 8 Monitor, 4 Aux, 4 Mix-Minus meters

• Linux based OS with touchscreen support accessible via HDMI video output

• Full screen XY controller built in

• Multiple Cue feeds if required

• Digital timer and clock on home screen

• Add custom logo to clock background

• Front end app can be used on Windows, Linux, or Mac for additional display of surface functions.
